Fully automatic pneumatic chuck

From plates to pipes, quick switching, fully automatic pneumatic chuck, high-precision clamping, can meet the cutting needs of various pipes, stable and reliable performance, easy operation, help you improve production efficiency

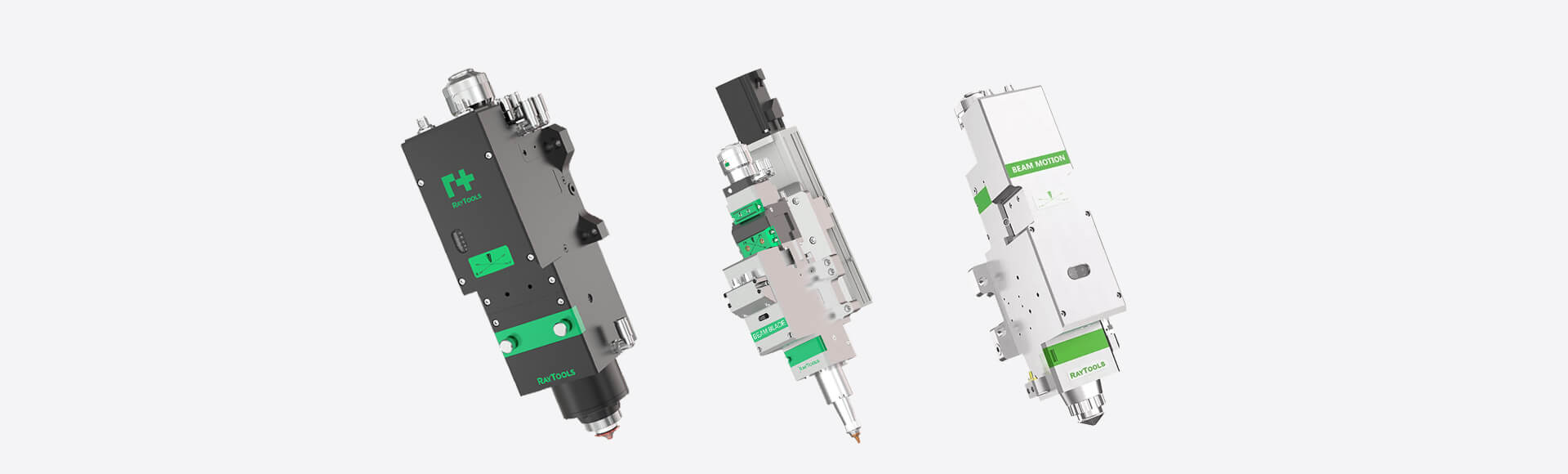

Auto Focus Laser Head

The laser head is equipped with autofocus function, which can quickly adjust the focal length to adapt to different power handling requirements for efficient and precise cutting

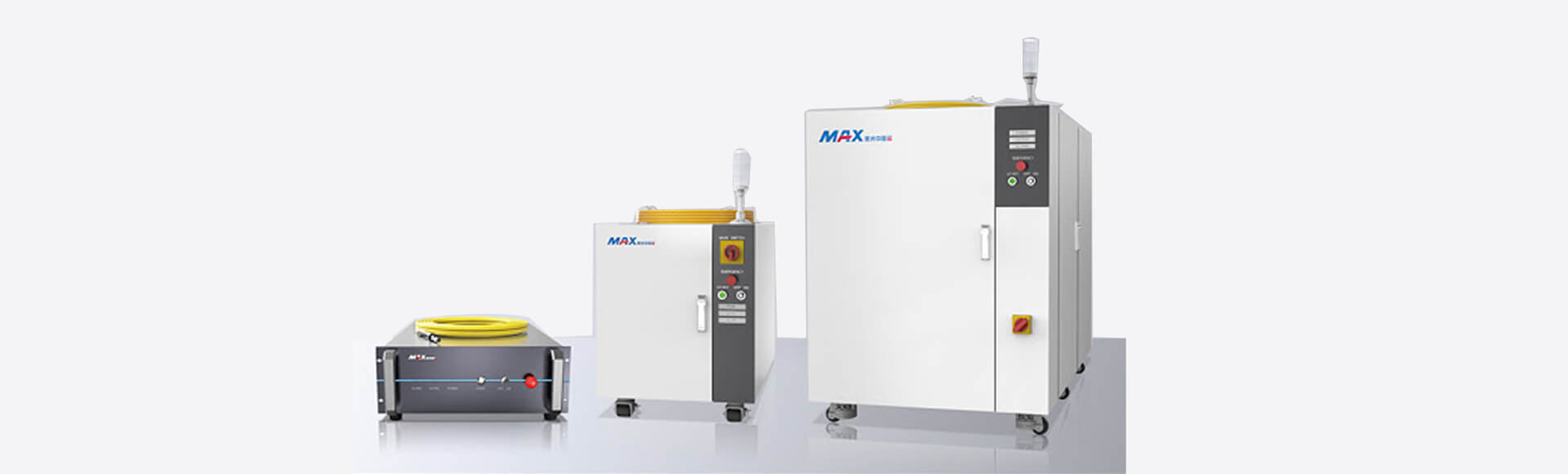

Laser generator

Fiber lasers from world-famous brands, customized by users, provide stable cutting results, helping you reduce costs and improve efficiency.

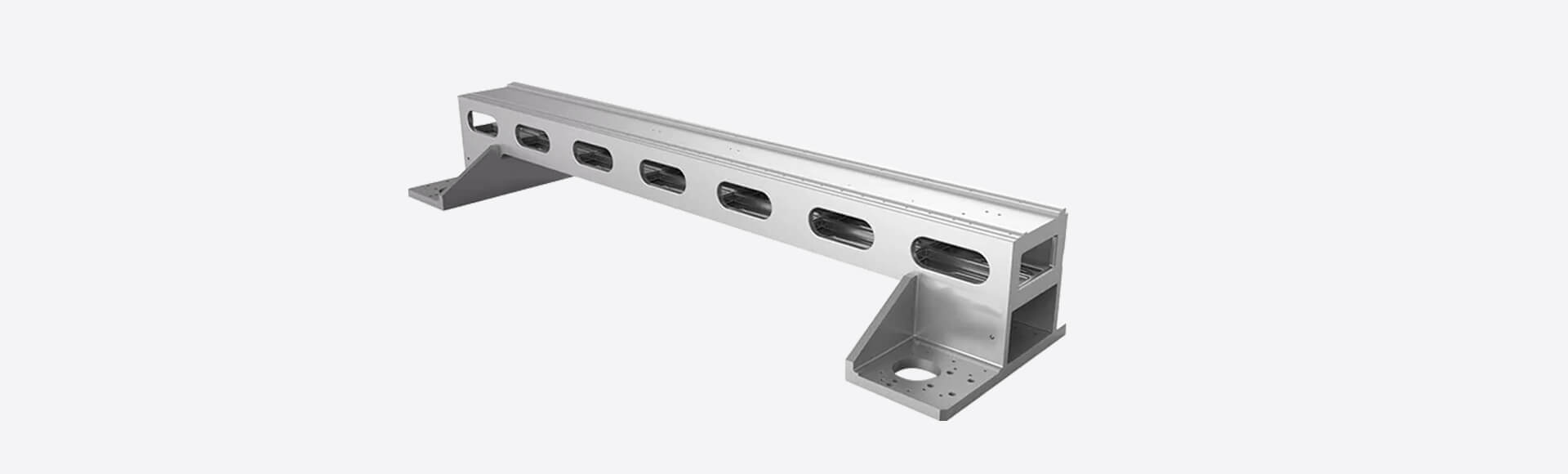

Ultrahigh pressure stretched aluminum beam

Ultra-high-pressure tensile aluminum beams increase rigidity by more than 20%. They are light weight, anti-corrosion, anti-oxidation, and low density, which can ensure fast and flexible cutting actions and increase processing speed.

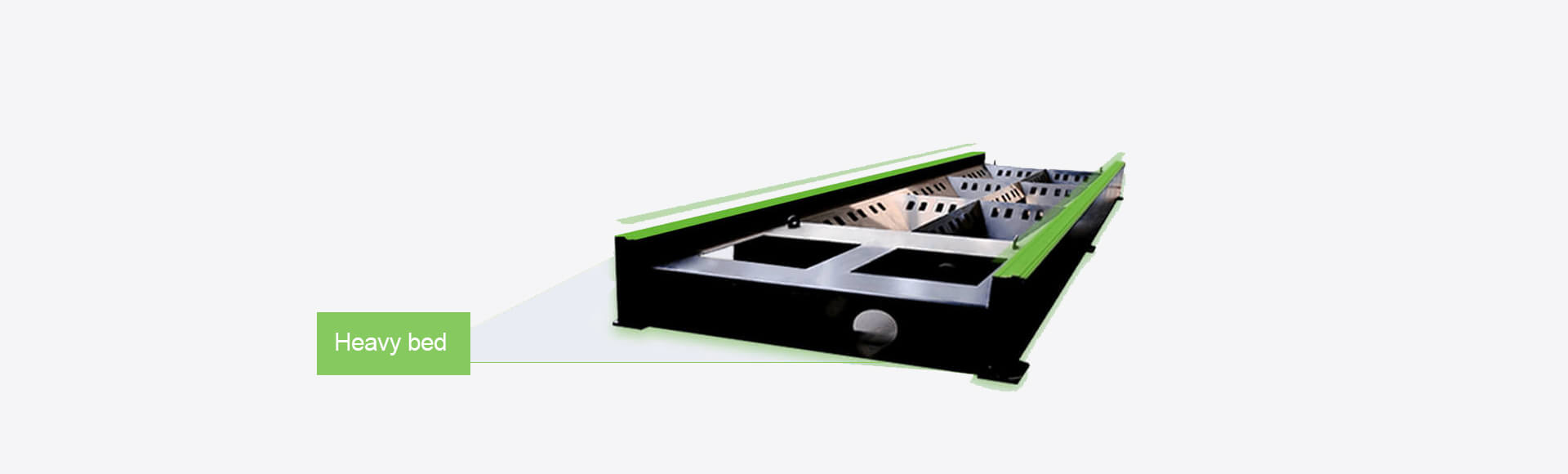

High strength machine bed

It adopts high-strength machine tool bed and 8mm ultra-thick steel plate, which is not easy to deform and has higher stability, ensuring the precision processing of the equipment and long-term durability.

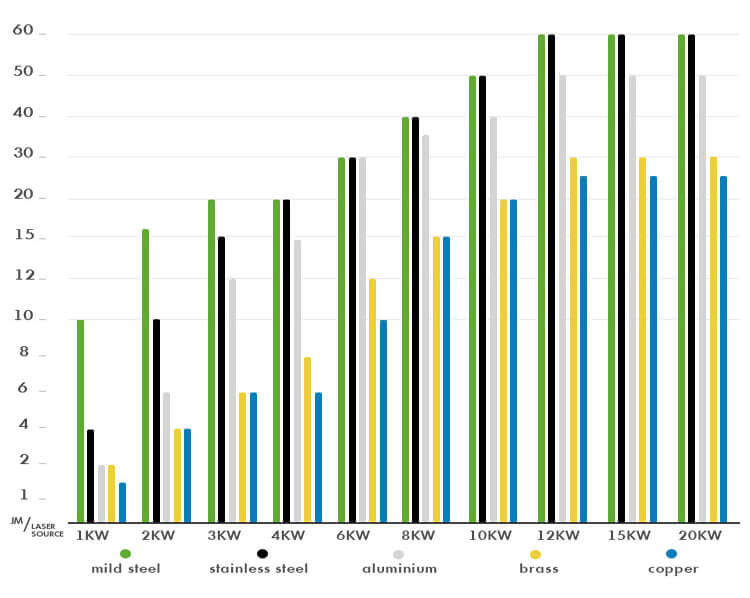

Fiber Laser Cutting Machine: Key Parameters

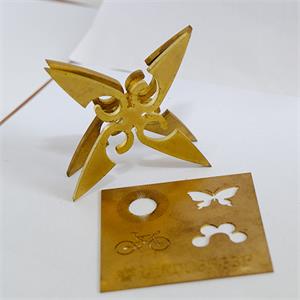

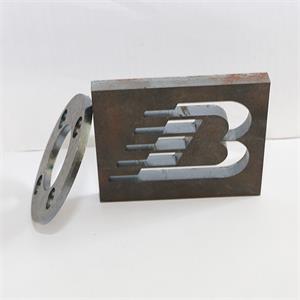

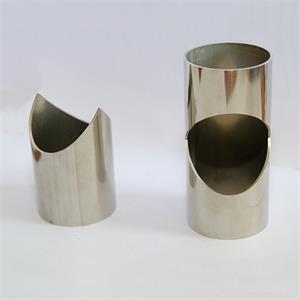

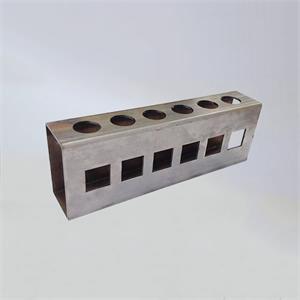

Fiber laser cutting machine can accurately cut various metal materials such as carbon steel, stainless steel, aluminum, copper, etc. The following are the cutting parameters for your reference. Explore more functions of the machine

The Future of Fabrication: How Sheet and Tube Laser Cutting Machines Revolutionize Manufacturing

In an era where efficiency and versatility define industrial success, sheet and tube laser cutting machines have emerged as transformative tools, bridging the gap between flat sheet and tubular component fabrication.

These hybrid systems combine the precision of laser technology with multi-functional capabilities, enabling manufacturers to process both 2D sheets and 3D tubes seamlessly.

This article explores the technological advancements, operational benefits, and industry-spanning applications of sheet and tube laser cutting machines, highlighting their role in driving modern manufacturing forward.

Unified Precision for Diverse Materials

Sheet and tube laser cutting machines leverage high-powered fiber lasers to cut a wide range of materials, including stainless steel, aluminum, copper, and titanium.

These systems are engineered to handle flat sheets (up to 25 mm thick) and tubes/pipes (round, square, or rectangular) with diameters ranging from 10 mm to 300 mm.

 The integration of CNC (Computer Numerical Control) ensures micron-level accuracy (±0.05 mm), making them ideal for industries requiring intricate designs, such as aerospace, automotive, and medical device manufacturing.

Unlike standalone machines, hybrid sheet and tube laser cutting machines eliminate the need for separate setups, reducing production bottlenecks.

Operators can switch between sheet and tube processing modes within minutes, thanks to adaptive clamping systems and automated tool changers.

This flexibility is further enhanced by AI-driven software, which optimizes cutting paths, minimizes material waste, and predicts maintenance requirements.

Key Advantages of Sheet and Tube Laser Cutting Machines

Dual-Function Efficiency:

By consolidating sheet and tube cutting into a single platform, manufacturers save floor space, reduce capital costs, and streamline workflows.

This dual functionality is particularly valuable for job shops serving diverse clients.

Superior Material Utilization:

Advanced nesting software arranges parts on sheets and tubes to maximize yield, achieving material efficiency rates exceeding 95%.

For example, leftover sheet metal can be repurposed for smaller tube components, minimizing scrap.

Speed and Scalability:

Fiber lasers cut sheets at speeds up to 30 meters per minute and tubes at 15 meters per minute, ensuring rapid turnaround times.

Automated loading/unloading systems and robotic arms enable 24/7 production, meeting high-volume demands without compromising quality.

Complex Geometry Capabilities:

These machines excel at producing intricate shapes, such as perforated sheets, flanged tubes, or multi-angle joints, which are challenging for traditional methods.

3D laser cutting heads allow for beveling, engraving, and hole drilling in a single operation.

Applications Across Industries

Automotive: Crafting lightweight chassis components from sheets and exhaust systems from tubes, enhancing fuel efficiency.

Construction: Fabricating structural steel beams (sheets) and handrails or HVAC ducts (tubes) with precision.

Furniture Design: Creating sleek metal tables (sheets) and curved chair frames (tubes) for modern interiors.

Energy Sector: Producing solar panel brackets (sheets) and pipeline connectors (tubes) resistant to extreme conditions.

Medical Technology: Manufacturing surgical tool housings (sheets) and implantable device components (tubes) from biocompatible alloys.

Technological Innovations

Modern sheet and tube laser cutting machines integrate cutting-edge features:

AI and IoT Integration: Real-time monitoring of laser power, gas pressure, and focal length ensures consistent cuts.

Predictive analytics reduce downtime by flagging component wear.

Hybrid Additive Manufacturing: Some systems now combine laser cutting with 3D printing, enabling repairs or additions to damaged tubes or sheets during production.

Eco-Friendly Operations: Fiber lasers consume 30% less energy than CO₂ lasers, while water-cooling systems and fume extractors minimize environmental impact.

Sustainability and Cost Savings

The precision of sheet and tube laser cutting machines reduces material waste, lowering raw material costs by up to 20%.

Additionally, the elimination of secondary processes (e.g., grinding or welding) cuts labor expenses.

Environmentally, fewer emissions and recyclable metal scraps align with circular economy principles.

Future Trends

The next generation of sheet and tube laser cutting machines will focus on:

5-Axis Cutting: Enabling complex angular cuts on both sheets and tubes without repositioning.

Augmented Reality (AR) Interfaces: Assisting operators in real-time adjustments via AR overlays.

Ultrafast Pulsed Lasers: Enhancing precision for reflective materials like copper or brass.

Conclusion

Sheet and tube laser cutting machines represent the pinnacle of manufacturing innovation, offering unmatched versatility, precision, and efficiency.

By unifying sheet and tube processing, these systems empower industries to tackle diverse projects with a single investment, reducing costs and lead times.

As demand for customized, high-quality metal components grows, adopting sheet and tube laser cutting machines becomes essential for staying competitive.

From automotive giants to architectural studios, this technology is reshaping fabrication, proving that the future of manufacturing lies in integration, intelligence, and sustainability.
