Description

5 Axis cnc router machine is an advanced CNC machine that can process three linear axes (X, Y, Z) and two rotary axes (A, B) simultaneously to achieve precise engraving of complex three-dimensional shapes.

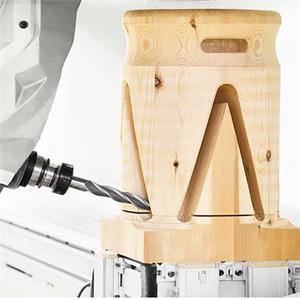

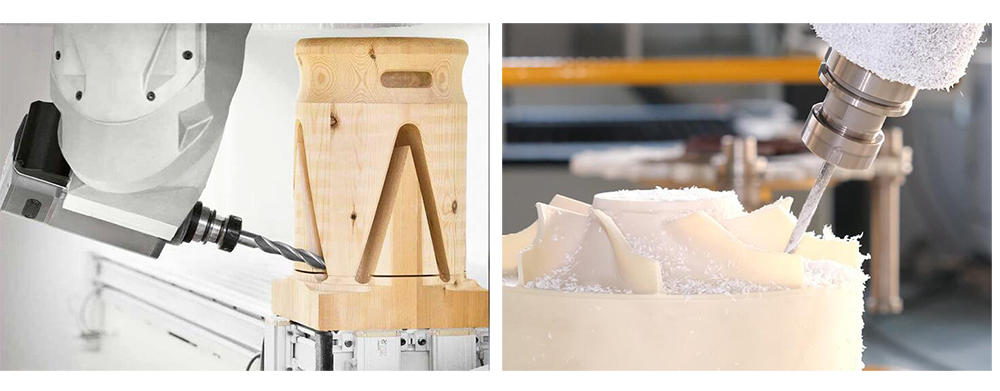

This machine is suitable for a variety of materials, including carbon fiber, composite materials, wood, plastic, jade and metal, and is widely used in aerospace, automotive manufacturing, art engraving and other industries. The five-axis linkage function makes the processing process more flexible, able to handle angles and curved surfaces, and improve production efficiency and product quality.

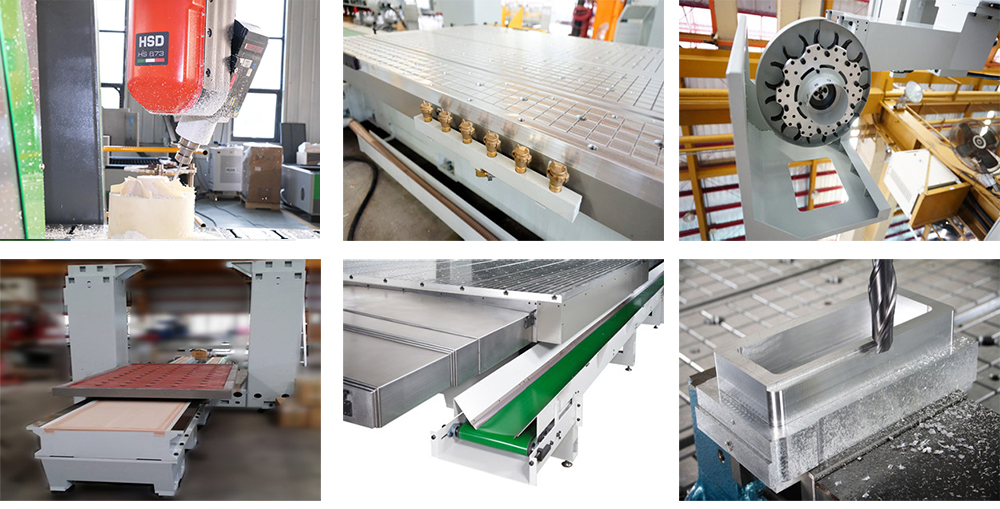

Features

1. Italian HSD 9.5KW(12HP) Electrospindle with 12-position Automatic Tool Changer(ISO30).

2. Aviation aluminum vacuum countertop/cast iron countertop are available for optional ,Support customization of special tooling fixtures according to processed products

3. Auto lubricating system, one touch can finish periodic maintenance easily.

4. Panel Loading system with scissor lift and automatic panel alignment. The system ease of use ensures long term reliability .also Moving the panel with

dynamic vacuum sunction cup loading system , A solution that adats to all sureface types.

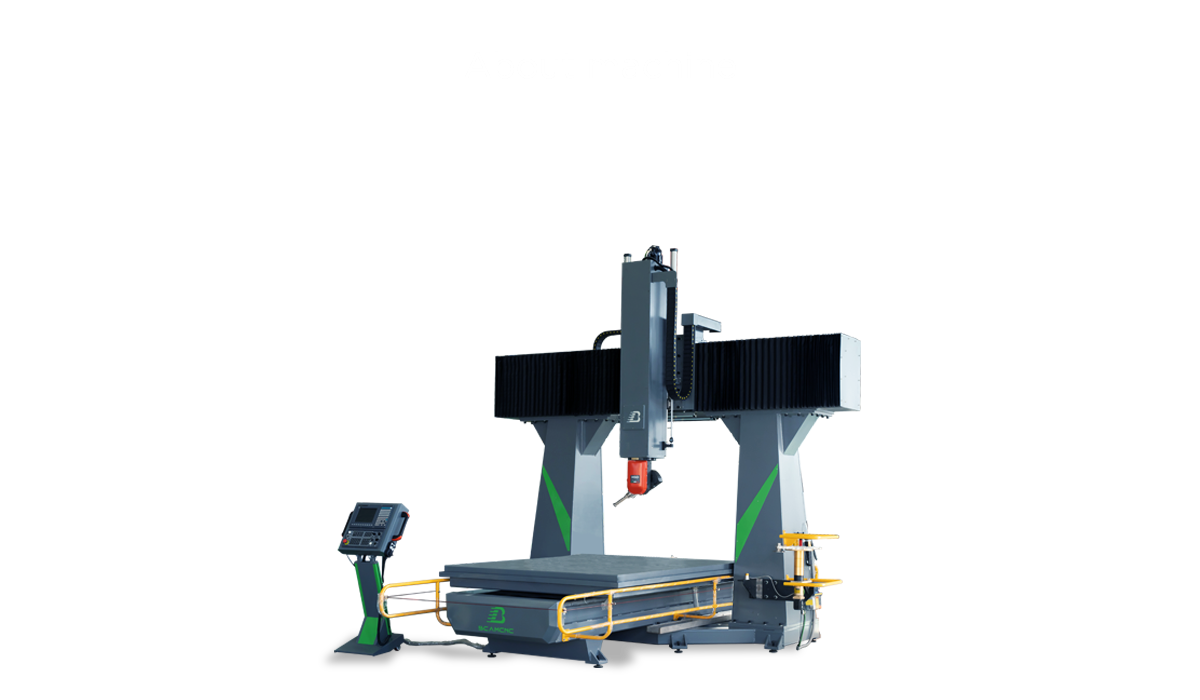

CNC Router Details

Foot print

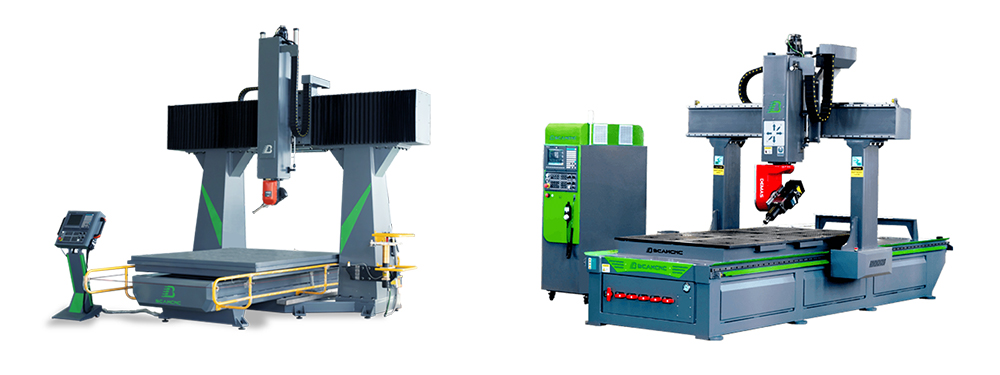

BCM D Series 5-axis CNC routers for sale are designed to increase precision, speed, and versatility in your production process.

Each 5-axis CNC router features five fully synchronized axes to meet even the most demanding production requirements, from routing to milling. Choose a twin moving table to boost productivity, or a single stationary table to free up floor space. These 3d router 5 axis vertical machining center machines easily handle substantial workloads, including large amounts of wood, plastic, aluminum, and corrugated materials.

‌The Revolutionary Impact of 5-Axis CNC Machine Centers in Modern Manufacturing‌

In today’s rapidly evolving industrial landscape, the ‌5-axis CNC machine center‌ has emerged as a cornerstone of precision manufacturing.

Combining advanced automation with unparalleled flexibility, this technology redefines the boundaries of machining capabilities.

This article explores the transformative role of 5-axis CNC machine centers, their advantages,

applications, and future trends, underscoring why they are indispensable in high-performance industries.

Understanding 5-Axis CNC Machine Centers

A ‌5-axis CNC machine center‌ operates with five axes of motion simultaneously: three linear (X, Y, Z) and two rotational (A and B or C).

Unlike traditional 3-axis machines, which require repositioning workpieces for complex geometries, 5-axis systems enable multidirectional cutting in a single setup.

This capability minimizes human intervention, reduces cycle times, and ensures exceptional accuracy for intricate parts—from aerospace components to medical implants.

Key Advantages of 5-Axis CNC Technology

‌Enhanced Precision and Surface Finish‌: By maintaining consistent tool-to-workpiece angles, ‌

5-axis CNC machine centers‌ reduce tool deflection and vibration, achieving mirror-like finishes even on hardened materials like titanium or Inconel.

‌Reduced Setup Time‌: Complex parts often demand multiple setups on 3-axis machines, increasing error risks.

A ‌5-axis CNC machine center‌ completes tasks in one clamping, slashing production time by up to 70%.

‌Improved Tool Life‌: Optimized tool paths and minimized repositioning lower wear and tear, extending tool lifespan by 30–50%.

‌Greater Design Freedom‌: Engineers can now create organic shapes and

undercuts previously deemed "unmachinable," fostering innovation in industries like automotive and renewable energy.

Industrial Applications of 5-Axis CNC Machine Centers

The versatility of ‌5-axis CNC machine centers‌ makes them vital across sectors:

‌Aerospace‌: Turbine blades, engine housings, and lightweight structural components require micron-level precision, achievable only with 5-axis dynamics.

‌Medical‌: Surgical tools, prosthetics, and dental implants benefit from the technology’s ability to machine biocompatible materials like PEEK and cobalt-chrome.

‌Automotive‌: From high-performance engine blocks to EV battery housings, manufacturers leverage 5-axis efficiency for rapid prototyping and mass production.

‌Energy‌: Wind turbine hubs and nuclear reactor parts rely on 5-axis machining for durability in extreme conditions.

Choosing the Right 5-Axis CNC Machine Center

Selecting an optimal ‌5-axis CNC machine center‌ hinges on several factors:

‌Work Envelope‌: Match the machine’s size to part dimensions and production volume.

‌Control System‌: Look for user-friendly interfaces (e.g., Siemens, Fanuc) with collision-avoidance algorithms.

‌Spindle Power‌: High-torque spindles (20,000+ RPM) are critical for hard materials.

‌Automation Compatibility‌: Pallet changers and robotic integration boost throughput for lights-out manufacturing.

The Future of 5-Axis CNC Machine Centers

As Industry 4.0 gains momentum, ‌5-axis CNC machine centers‌ are evolving with IoT-enabled predictive maintenance,

AI-driven toolpath optimization, and hybrid additive-subtractive systems.

Companies like DMG Mori and Mazak now offer machines with real-time data analytics, reducing downtime by 25%.

Furthermore, advancements in linear motor technology and carbon-fiber-reinforced components are pushing cutting speeds beyond 60 m/min, redefining productivity benchmarks.

Conclusion

The ‌5-axis CNC machine center‌ represents a paradigm shift in manufacturing,

empowering industries to tackle complex challenges with unprecedented efficiency.

By minimizing errors, accelerating production, and enabling groundbreaking designs, this technology is not merely an asset but a necessity for staying competitive.

As smart factories become the norm, investing in 5-axis capabilities will separate industry leaders from followers, driving the next wave of industrial innovation.
