Description

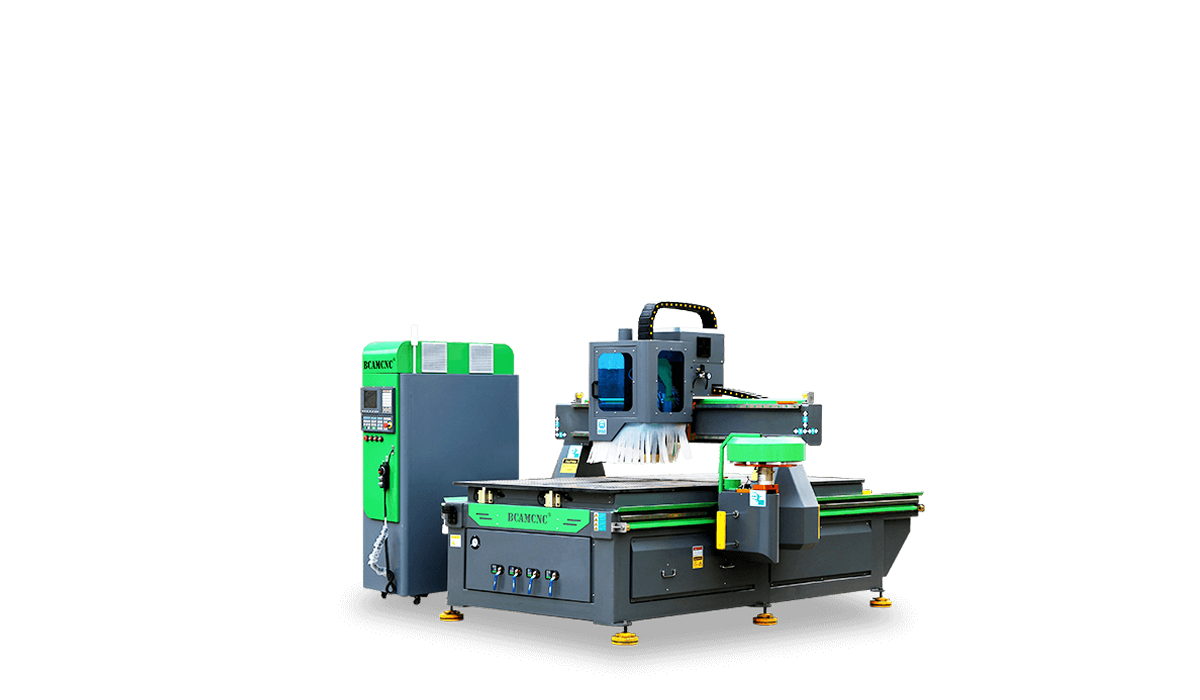

The disc automatic tool changing woodworking engraving machine is an advanced CNC equipment. Its core feature is a disc-shaped tool magazine that can store a variety of tools of different specifications. When the tool needs to be replaced, the engraving machine automatically selects and switches to the required tool. This process is fast and precise, significantly improving processing efficiency and flexibility.
The disc-changing engraving machine is suitable for complex wood engraving work, such as furniture making, wood carving art, door and window engraving, etc., especially in mass production, it can effectively reduce manual intervention and ensure the consistency of product quality.

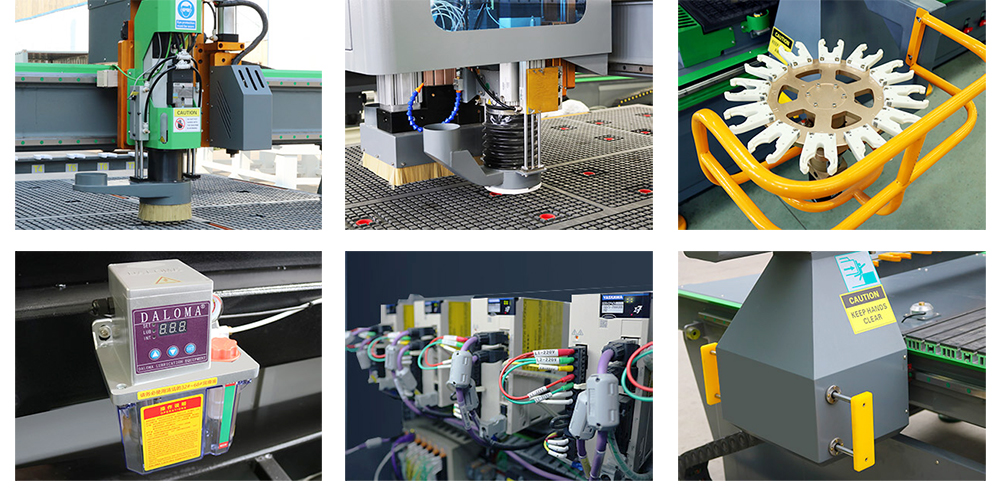

CNC Wood Router Details
1. BCM1325D selects Italian HSD air-cooled spindle, power: 9.5KW. Choose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.
2. BCM1325D series is a cnc router designed by BCAM for automatic disc changer. It is faster than BCM1325C series tool change, eliminating manual The cumbersome tool change shortens the tool change time and makes the cnc router more precise.
3. Auto lubricating system, one touch can finish periodic maintenance easily.
4. Vacuum table using high-density (1.3-1.45g/cm) material with great suction strength, comfortably accommodating all sizes of work piece.
Design drawings
PRODUCTS VIDEO
For wood working, cabinet maker,Sign maker, other soft metal material cutting&engrave&drillingTechnical Parameters
MODEL | BCM-D series |
| X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
Optional Working Area | 1300*1300*200mm|4*4ft |
Optional Working Area | 1500*3000*200mm|5*10ft |
Optional Working Area | 2000*3000*200mm|6*10ft |
Optional Working Area | 2000*4000*200mm|6*13ft |
Optional working Area | 2000*6000*200mm|6*20ft |
Spindle Power | Italy HSD ES951 9.5kw Air cooling spindle |
X,Y,Z Traveling Positioning Accuracy | +0.01/2000mm |
Table Surface | Vacuum table+T-solt table |
X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBl Ball Screw |
Max. Rapid Travel Rate | 120m/min |
Max. Working speed | 70m/min |
Cutting thickness | According materials |
Spindle Speed | 6000-24000RPM |
Drive Motors | Japanese Yaskawa Servo motor and drivers |
Working Voltage | AC380v/50HZ/3 phase |
Command Language | G Code |
Operating System | Taiwan Syntec 6MB control system |
Interface | USB |
Software Compatibility | Option: Alphacam/Solidworks/Vcare Pro/Artcam, etc |
Running Environment | Temperature:0'C~45'C Relative Humidity: 30%~75% |
Cutting samples
BCAM CNC router can wood cnc machine a lot of different materials. Here listed just a few materials that can be machined 2D or 3D: Soft metals / Non-ferrous metals、Brass、Aluminium、Titanium、Noble metals such as silver, gold、Wood、Multiplex、Plastics、Acrylic glass、Granite and marble
Download Zone
More downloadsApplication industry
Kitchen appliances,sheet metal case cabinets,machinery equipment,electrical equipment,lighting hardware,advertising signs,auto parts,display equipment,various metal products,sheet metal cutting and processing industries.
