Description
The 4-axis woodworking engraving machine is a high-end CNC device with X, Y, Z axes and an additional A-axis rotation function. The A-axis allows the spindle and workpiece to rotate in the vertical direction, realizing three-dimensional engraving of cylindrical or curved objects. This engraving machine is suitable for fine engraving such as musical instrument parts, column heads and decorations, providing higher processing flexibility and creative freedom, and is an ideal choice for pursuing complex three-dimensional shapes.
Features
1. BCAM 4 axis CNC Router is designed to ensure high performance and productivity with low maintenance requirement.
2. This machine has a steel framework with gantry support and ISO30 9kw frequency spindle.
3. The structure of the machine is rigid to provide enough strength for high-speed machining at a pace of +- 135° on C axis suiting different production requirement
4. Air cooling HSD Spindle has a strong cutting ability, is very good at long time woodworking.
5. Vacuum & T-slot combined work table absorbs big materials by vacuum power and fixes small materials by clamps.

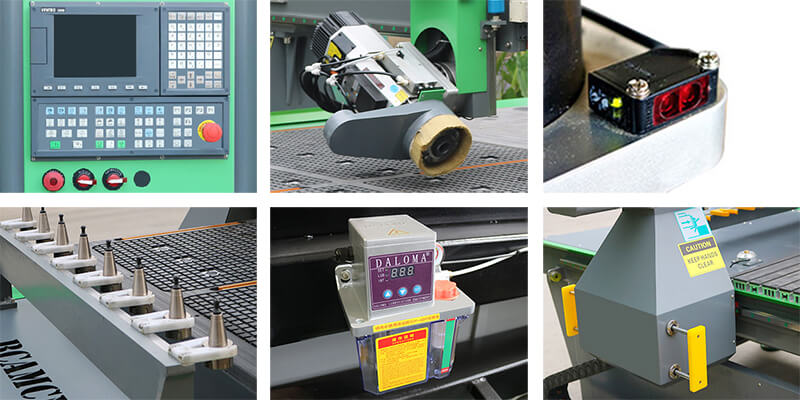

CNC Router Details
More products

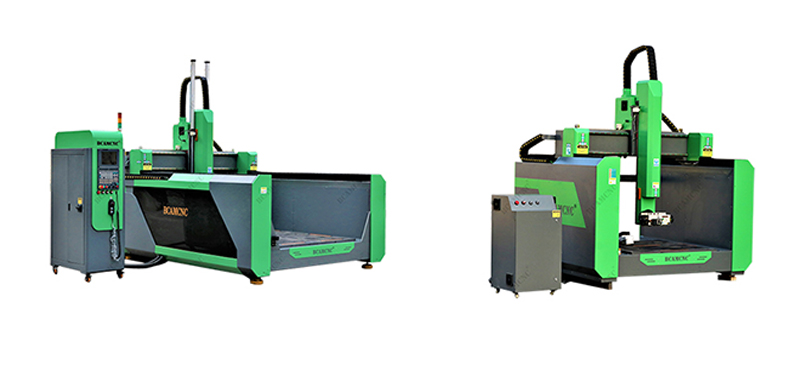

The four-axis engraving machine provides innovative sunken table options to meet the needs of different scenarios, demonstrating its excellent customization capabilities.
PRODUCTS VIDEO
Italy HSD 9.6KW ES951 Air Cooling Spindle with ISO30 Auto tool Changer ±90 ° Rotary axisTechnical Parameters
MODEL | BCM-4 Axis cnc router |
| X,Y,Z Working Area | 1300*2500*200mm |
1500*3000*200mm | |
| 2000*3000*200mm | |
| 2000*4000*200mm | |
| 2000*6000*200mm | |
Z axis Optional 400mm ,600mm,800mm,1000m | |
| Spindle Power | 9kw ltaly HSD air cooling spindle |
X,Y,Z Traveling Positioning Accuracy | +0.01/2000mm |
Table Surface | Vacuum table+intergrated T-solt table clamping System |
X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBl Ball Screw |
Max. Rapid Travel Rate | 80m/min |
Max. Working speed | 60m/min |
Cutting thickness | According materials |
Spindle Speed | 6000-24000RPM |
Drive Motors | Japanese askawa Servo motor and Drivers |
Working Voltage | AC380v/50HZ/3 phase |
Command Language | G Code |
Operating System | Taiwan Syntec control system |
Interface | USB |
Software Compatibility | Option:BCAMPRO/VCarve/vcarve Pro/ArtCAM/UCANCAM.etc. |
Running Environment | Temperature: 0'C~45'C Relative Humidity:5%~75% |

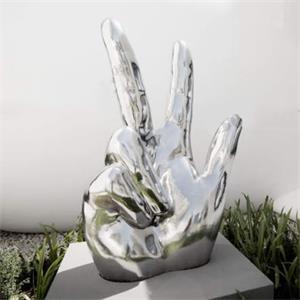

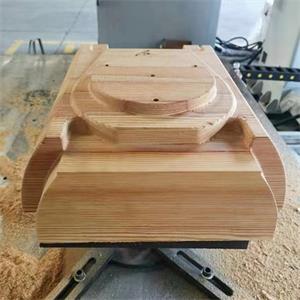

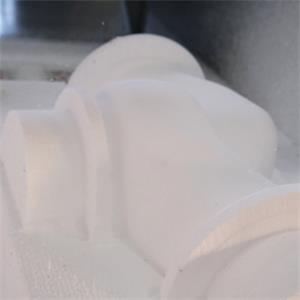

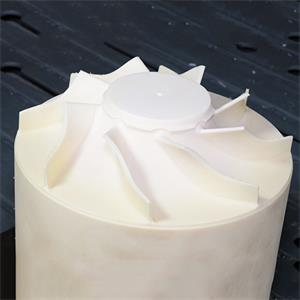

Cutting samples
A BCAM CNC router can wood cnc machine a lot of different materials. Here listed just a few materials that can be machined 2D or 3D: Soft metals / Non-ferrous metals、Brass、Aluminium、Titanium、Noble metals such as silver, gold、Wood、Multiplex、Plastics、Acrylic glass、Granite and marble
Download Zone
More downloadsApplication industry
Kitchen appliances,sheet metal case cabinets,machinery equipment,electrical equipment,lighting hardware,advertising signs,auto parts,display equipment,various metal products,sheet metal cutting and processing industries.
